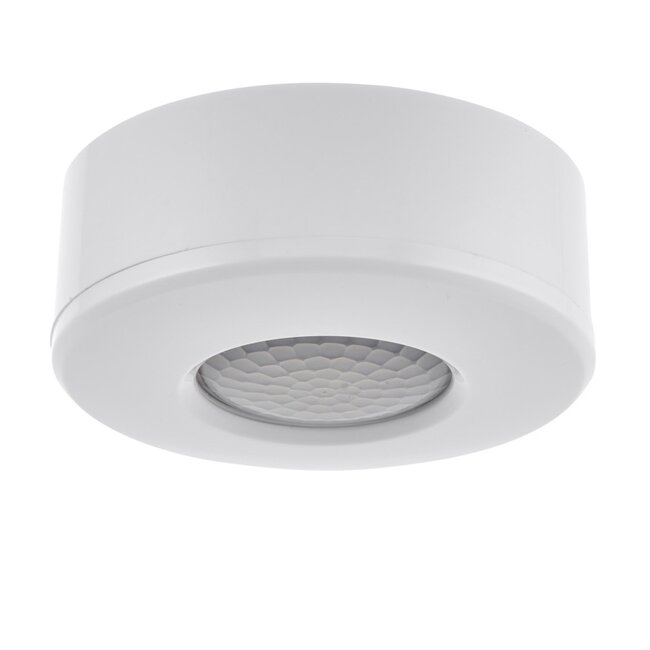

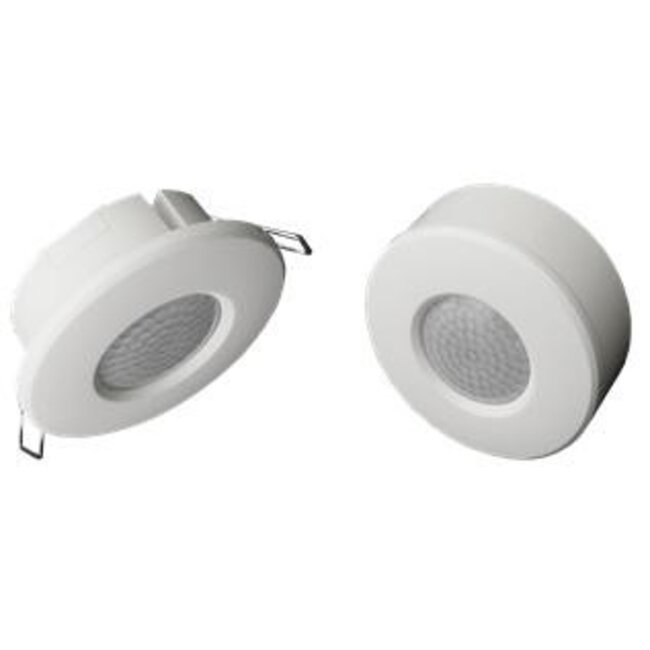

With a 360° detection angle and range of 8 metres the PIR can control a 2000W resistive load and 1000W of driver load. Perfect for low use areas and ideal for energy saving applications.

Complete with built in PIR
Ambient Light: <10Lux~2000 Lux (adjustable)
Detection Range:360º
Detection Distance:Max.8m(<24ºC)
Time delay: 10Sec-7Min (adjustable)
Power Source: 220~240V/AC 50/60Hz
Rated Load: Max.2000W (incandescent lamp)
1000W (energy-saving lamp/LED lamp)
Ambient Light: <10Lux~2000 Lux (adjustable)
Installation Height: 2.2-4m
White abs plastic
Constructed from abs plastic

Proj: 36mm Dia: 93mm
Class 2
Cut hole Dia: 73mm

Ambient Light: <10Lux~2000 Lux (adjustable)
Detection Range:360º
Detection Distance:Max.8m(<24ºC)
Time delay: 10Sec-7Min (adjustable)
Power Source: 220~240V/AC 50/60Hz
Rated Load: Max.2000W (incandescent lamp)
1000W (energy-saving lamp/LED lamp)
Ambient Light: <10Lux~2000 Lux (adjustable)
Installation Height: 2.2-4m
