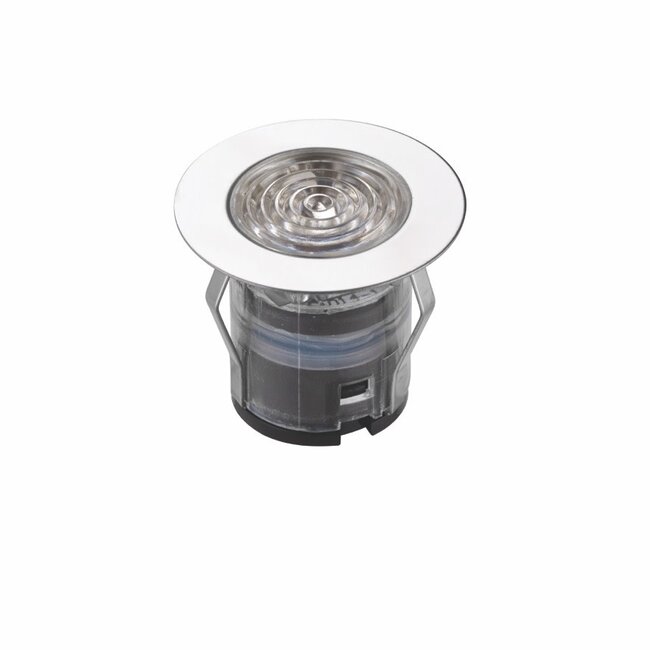

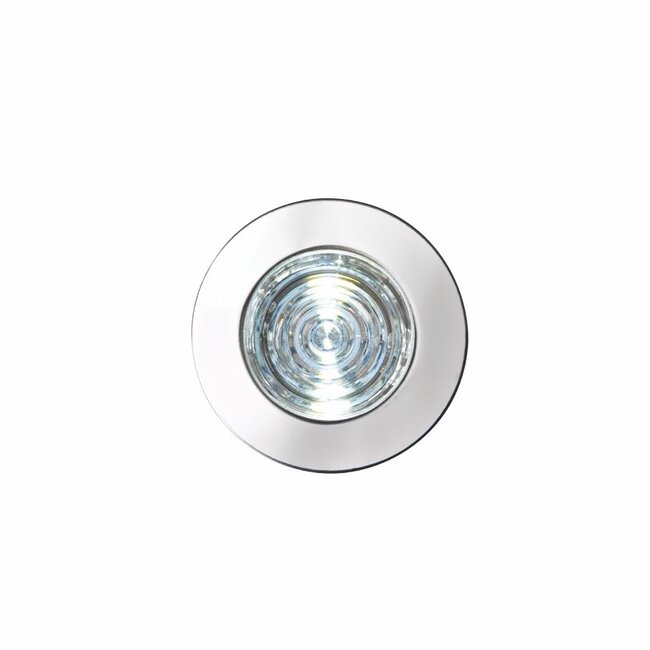

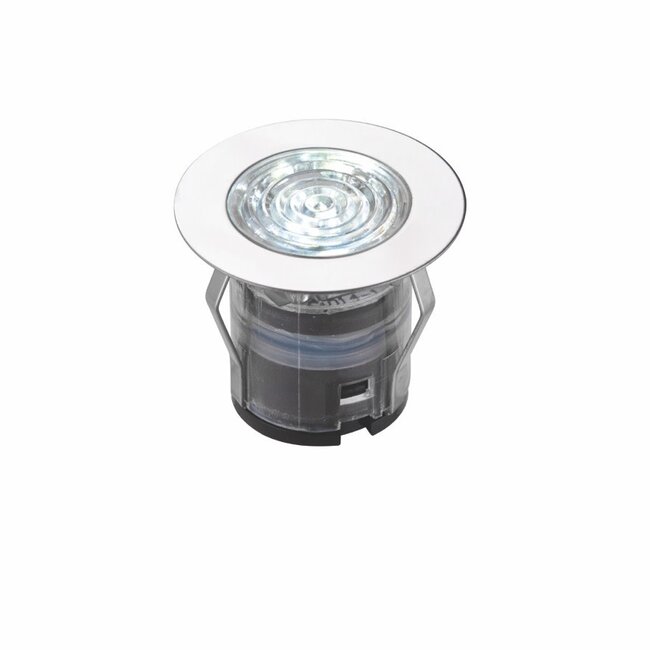

Using the unique design of removable and interchangeable heads to change colour, you simply lift the LED head out of the connector, turn the head 180° and reinsert into the loom. Designed to be fitted and wired during the decking build stage without the heads, the supplied rubber caps protect the fitting from the elements until the decking is complete. Available in a variety of sizes and colours.

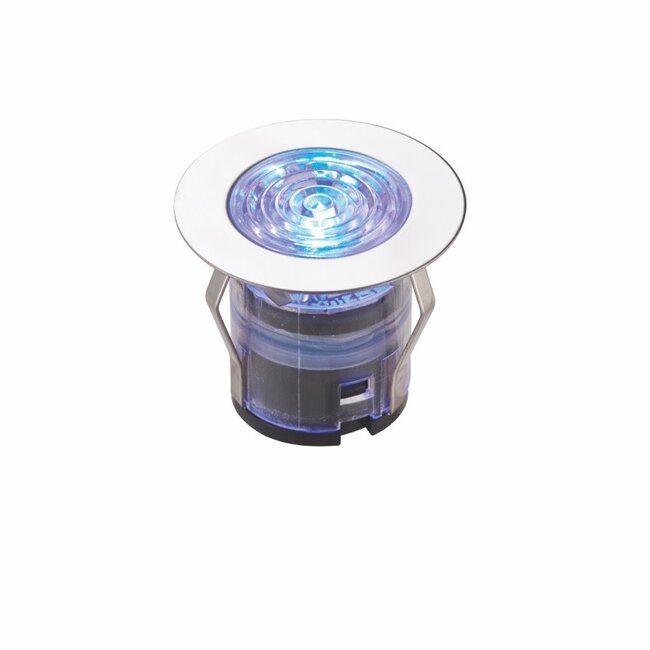

An addition to the popular IkonPRO recessed LED decking kit range, within each head there is the choice of 3000K or 4000K in one kit or the other kit offers 6500K or blue. Using the unique design of removable and interchangeable heads to change colour, you simply lift the LED head out of the connector, turn the head 180° and reinsert into the loom. Designed to be fitted and wired during the decking build stage without the heads, the supplied rubber caps protect the fitting from the elements until the decking is complete. Available in a variety of sizes and colours.

Suitable for indoor or outdoor use

Polished stainless steel & clear pc
Constructed from stainless steel (304) & polycarbonate
Super bright SMD LED technology
Innovative new fitting method
Improved lens design

Complete with LED driver
10 x 0.75W LED module (SMD 4014) CCT (Included)
K: 6500/20000 Lm: 120 Lm/W: 16
IP67
Proj: 1mm Dia: 25mm
Class 3
Cut hole Dia: 20mm

Kit includes: 10 x 0.75W LED heads, 15W Driver, 5m Extension cable, 2 x 5 way looms & 3 Pin Plug
Fitting the Ikon Pro
Step 1 - Drill hole to the correct size
Step 2 - From below, push the wiring loom through the hole (without head)
Step 3 - Place weather protective cap onto the socket

Once the decking in complete
Step 4 - Place the LED heads onto the loom
Step 5 - Let the cap fall through the hole & firmly push the head into place. Repeat for all heads
Step 6 - Push the plug in and switch on to test
