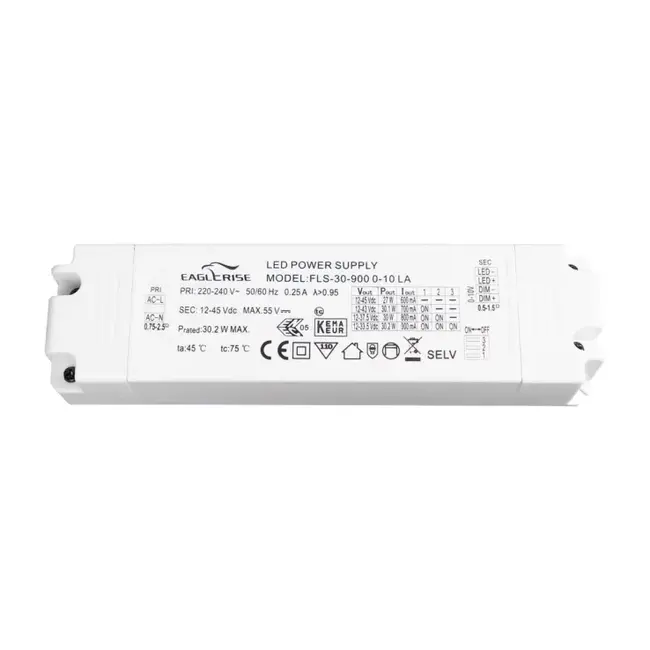

Intelligent Series PF0.9 – 0-10V dimmable 30W FLS-30-900 0-10 LA REV1.2.2 ▲Constant current design ▲Input Voltage 220-240VAC ▲Protections: short circuit/over load/over voltage ▲IP20 Ingress protection ▲Power Factor ＞0.95 ▲Efficiency >83% ▲Class II，SELV, independent ▲0-10V dimmable ▲Current ADJ. by dip-switch ▲5 years warranty SPECIFICATION Input Rated input voltage 220-240VAC Range of input voltage 176-264VAC Frequency(Hz) 50/60 Hz Power Factor ＞0.95@220-240VAC, full load Input Current max 0.25A MAX. @Full Load,176VAC Start-up time <0.5S Unload Power Consumption ≤0.5W Inrush Current 20A Max. THD 8% Typ. @Full Load, Io=900mA Leakage Current ＜0.5mA(240VAC) Output Constant Current Max. 900mA Unload voltage Max. 55 VDC Voltage Range(VDC) 12-45VDC Rated power 30.2W Max. Current ADJ. Range by dip-switch Vo Po Io 1 2 3 12-45VDC 27W 600mA -- -- -- 12-43VDC 30.1W 700mA ON -- -- 12-37.5VDC 30W 800mA ON ON -- 12-33.5VDC 30.2W 900mA ON ON ON Current Accuracy ±5% Voltage Regulation ±5% @Full Load Load Regulation ≤5% Hold-up Time 1s max.@Full Load Ripple& Noise *Note.2 ≤54mAp-p Efficiency(Typ.) ≥83% Dimming Dimmable YES Dimming mode 0-10V Dimming mode Dimming current range 5%~100% Protection Over Load Protection 103-120% Protection type: Auto Resume Over Voltage Protection ＞55VDC Protection type: Auto Resume Short circuit Protection Protection type: Auto Resume Over Temperature protection NA Environment Operating Temperature -20℃…+45℃ tc 75℃ Storage Temperature -25℃…+60℃ Humidity 20%-95%RH Life time ＞30,000h @45℃ Others Dimension 170X45X30(LXWXH)mm Safety & EMC Safety standards EN 61347-1; EN61347-2-13; EN62384 Withstand voltage Input-Output：3750V/5mA/1min Isolation resistance Input-Output：≥4MΩ@500VDC EMI EN55015; EN61000-3-2 Class C; EN61000-3-3 EMS EN 61547; EN 61000-4-2 —Performance Criteria B; EN 61000-4-5 —1000V; Performance Criteria C Note 1.All parameters NOT specially mentioned are measured at 240VAC input , full load and 25℃ of ambient temperature. 2.Ripple & Noise are measured at 20MHz of bandwidth by using a 300mm twisted pair-wire terminated with a 0.1uF & 47 uF parallel capacitor. Intelligent Series PF0.9 – 0-10V dimmable 30W FLS-30-900 0-10 LA REV1.2.2 MECHANICAL SPECIFICATIONS CURVE Lifetime vs. Ambient Temperature Curve for Io=900mA Efficiency vs. Load for Io=900mA Power Factor Characteristics for Io=900mA THD vs. Load for Io=900mA
